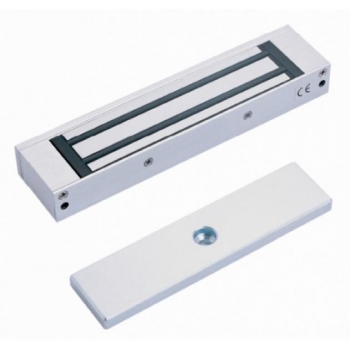

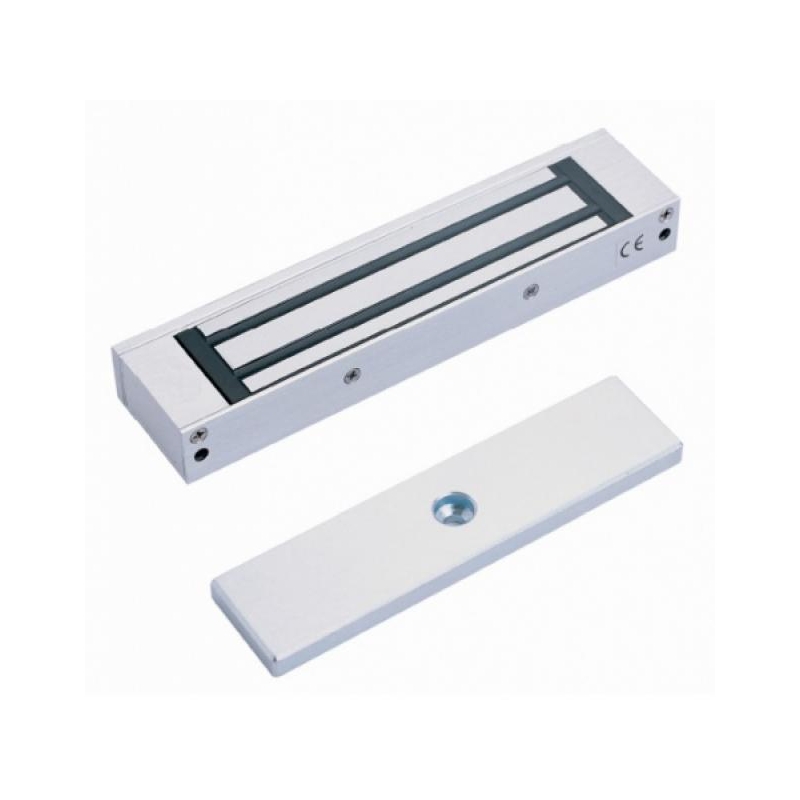

IGEM4 Magnetic lock 530 kg



Main features
Security/Holding Force: Grade 6 (≲ 5 300N ) Tol. 15%
Category of use: Grade 3 (High frequency - Public use)
Durability/reliability: Grade 9 ( > 1 000 000 cycles)
Corrosion resistance/humidity/IP protection: Grade 3 (EN 1670, EN ISO 9227)

Technical data
Mounting: Surface
Residual magnetism: 0% - By design (No push-pin, no electronic quick-off)
Locking monitoring (LSS): Led + Reed sensor + relay
Electrical/spark protection: Built-in metal-oxyde varistor (MOV)
Power: 12/24VDC - 500/250 mA
Environmental protection / IP Rating: IP 43 (fixed under transom)
Sizes (L x h x w): 268 x 73 x 40 mm
Weight: ~4 Kg
Environmental / Temperature -40°C to +60°C
